5V-12V DC Brushless Driver Board Controller For Hard Drive Motor 3/4 Wire
Original price was: ₹1,299.00.₹1,099.00Current price is: ₹1,099.00.
Ask for Latest offers/availability : https://bit.ly/3lb6JI6
- Drive voltage: DC 5-l2V
- Work current: ≤ 1.2A
- Dimensions mm (LxWxH): 64 x 46 x 16
- Weight: 23g
- Type: Voltage Regulator
- Speed range: from 0% to 100%
- Phase inversion Control: Yes
- Voltage polarity protection: Yes
Availability: 52 in stock

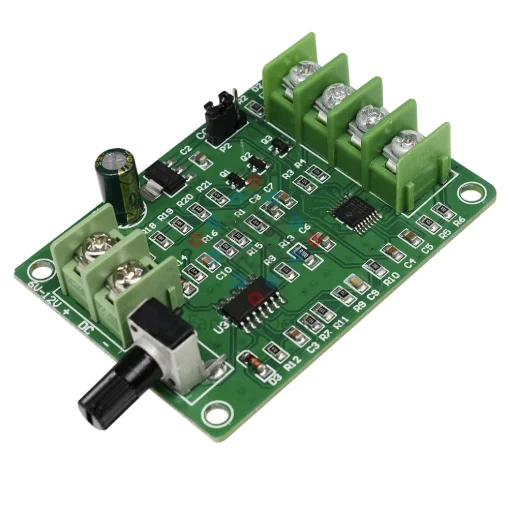

5V-12V DC Brushless Driver Board Controller For Hard Drive Motor 3/4 Wire is as shown in Pictures. The driver board can drive hard disk brushless motors, CD-ROM brushless motors and another micro brushless motor of line 3 or 4 wires without a hall sensor. It has reverse voltage protection, over current protection to ensure user safety. The driver voltage 5-12V, the higher the voltage the faster the speed, the maximum speed up to 10,000rpm.
Specifications and Features:
- Drive voltage: DC 5-l2V
- Work current: ≤ 1.2A
- Dimensions mm (LxWxH): 64 x 46 x 16
- Weight: 23g
- Type: Voltage Regulator
- Speed range: from 0% to 100%
- Phase inversion Control: Yes
- Voltage polarity protection: Yes
- Overcurrent Protection: Yes
Package Includes:
1 x 5V-12V DC Brushless Driver Board Controller For Hard Drive Motor 3/4 Wire
