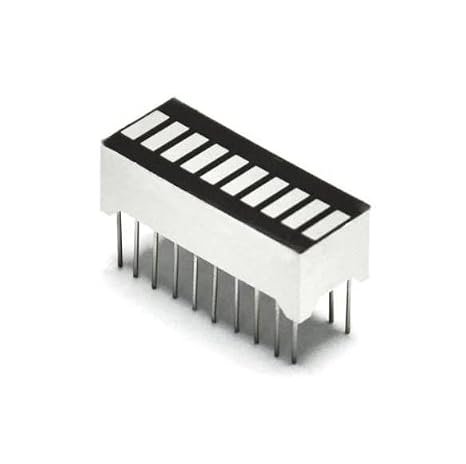

10 Segment Light Bar Graph LED Display

LED Bar Graph is an LED array, which is used to connect with an electronic circuit or microcontroller. It’s easy to connect the LED bar graph with the circuit like as connecting 10 individual LEDs with 10 output pins. Generally, we can use the LED bar graph as a Battery level Indicator, Audio equipment, and Industrial Control panels. There are many other applications of LED bar graphs. Make a small linear display with a glowing blue color using this elegant LED bar graph only 1″ long. 10 LEDs are contained in the plastic body. This display is bright, beautiful, and funky with nice diffused rectangular lenses for a striking look. There are 20 pins, 10 on each side, with 0.1″ spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.
