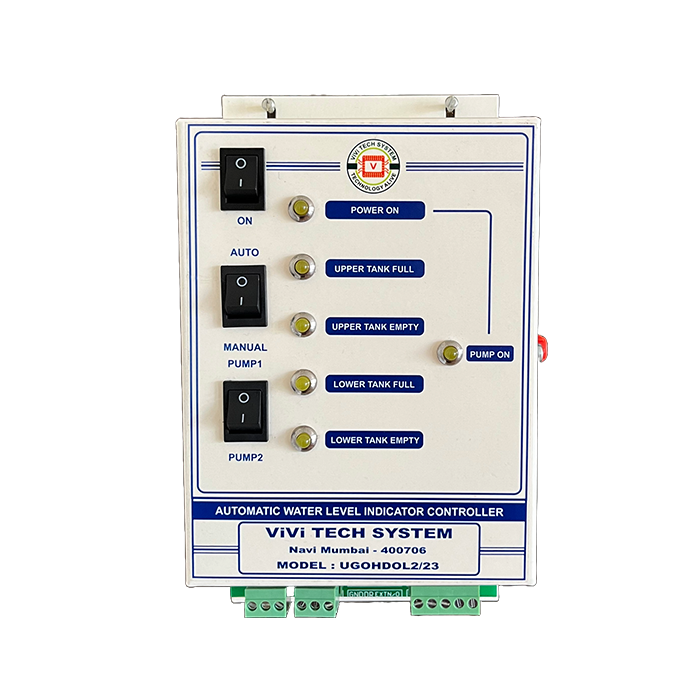

(UGOHDOL2/23)
This controller is suitable for the controlling the overhead tank water supply by sensing the both tank water level. The pump will start in following sequence.
Underground Tank : Full
Overhead Tank : Empty
Underground Tank : Empty
Overhead Tank : Full
Underground Tank : Full
Overhead Tank : Full
This controller has a provision of stand by pump connectivity. When one pump fails, we can switchover to stand by pump, thus achieving uninterrupted water supply.
Specification :
| Model No | UGOHDOL2/23 |
|---|---|
| Control on | Underground Tank & Overhead Tank |
| Facia Indications | Power on/Pump on Underground tank & Overhead tank level status |
| Protections | Underground tank Empty & Overhead tank Full |
| Operation Mode | Auto / Manual |
| Pump | Single Phase / Three Phase motor with starter/contactor |
| Pump Selection | Dual Pump |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 4.75 X 8 X 2.5 inch |
| Mounting | Wall mounted type |
| Cabinet | MS powder coated |
