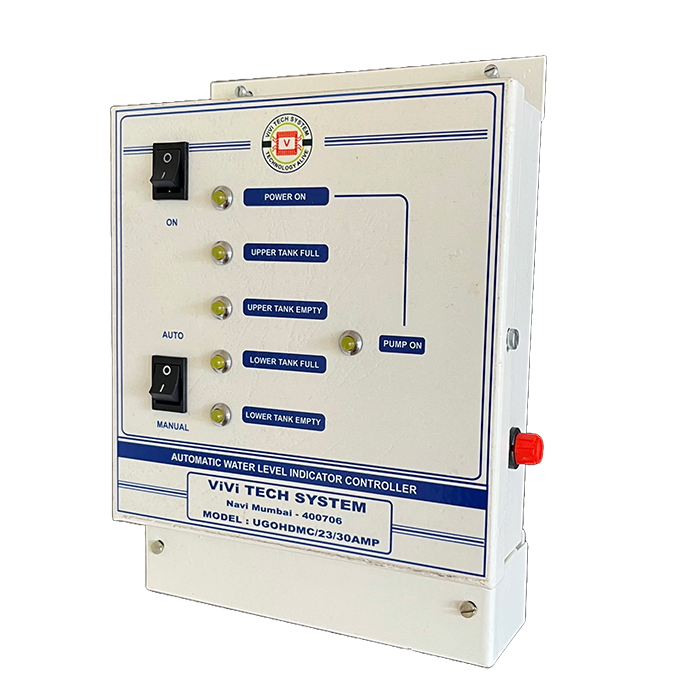

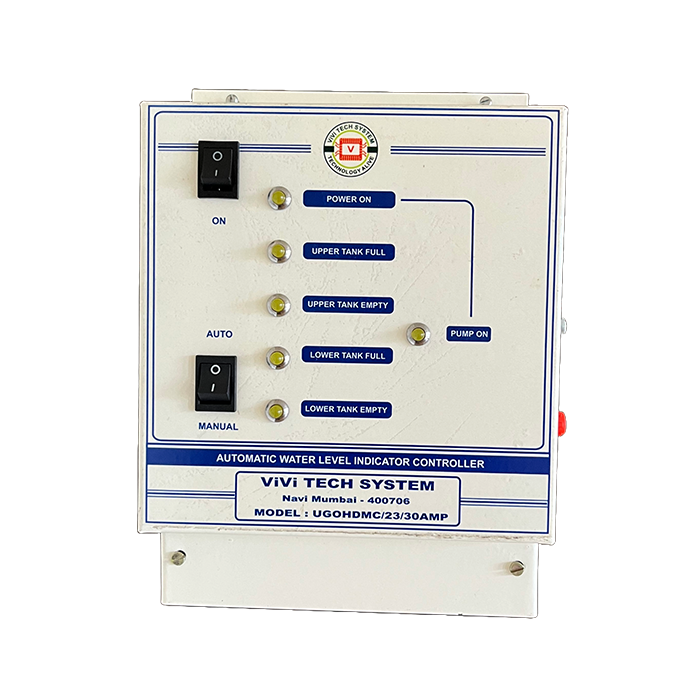

Underground & Overhead Tank
Water Level Indicator Controllers
(UGOHDMC/23/30AMP)
(UGOHDMC/23/30AMP)
This controller is suitable for the controlling the overhead tank water supply by sensing the both tank water level. The pump will start in following sequence.
Pump Start Condition
Underground Tank : Full
Overhead Tank : Empty
Pump Stop Condition:
Underground Tank : Empty
Overhead Tank : Empty
Underground Tank : Full
Overhead Tank : Full
Specification :
| Model No | UGOHDMC/23/30AMP |
|---|---|
| Control on | Underground Tank & Overhead Tank |
| Facia Indications | Power on/Pump on Underground tank & Overhead tank level status |
| Protections | Underground tank Empty & Overhead tank Full |
| Operation Mode | Auto / Manual |
| Pump | Single Phase pump Up to 2 Hp Direct Drive |
| Pump Selection | Single Pump |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 6 X 8 X 2.5 inch |
| Mounting | Wall mounted type |
| Cabinet | MS powder coated |
| Assembling | Industrial grade components |
