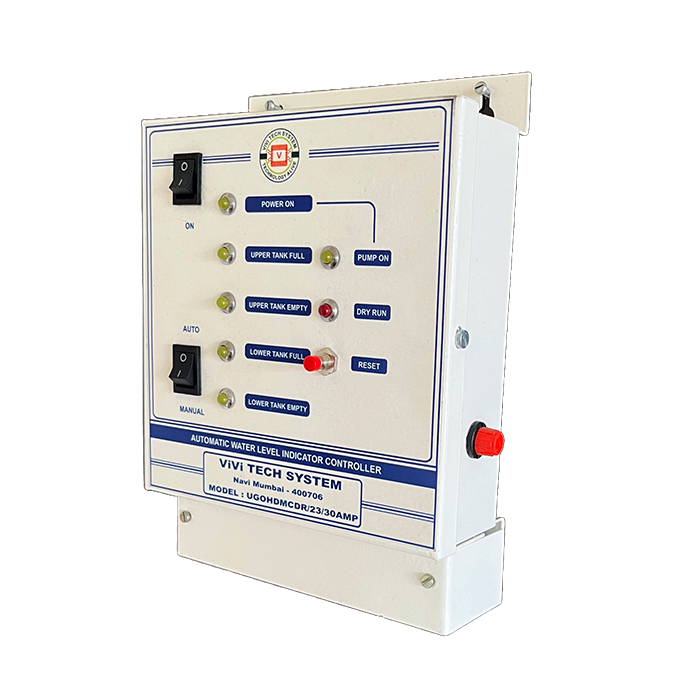

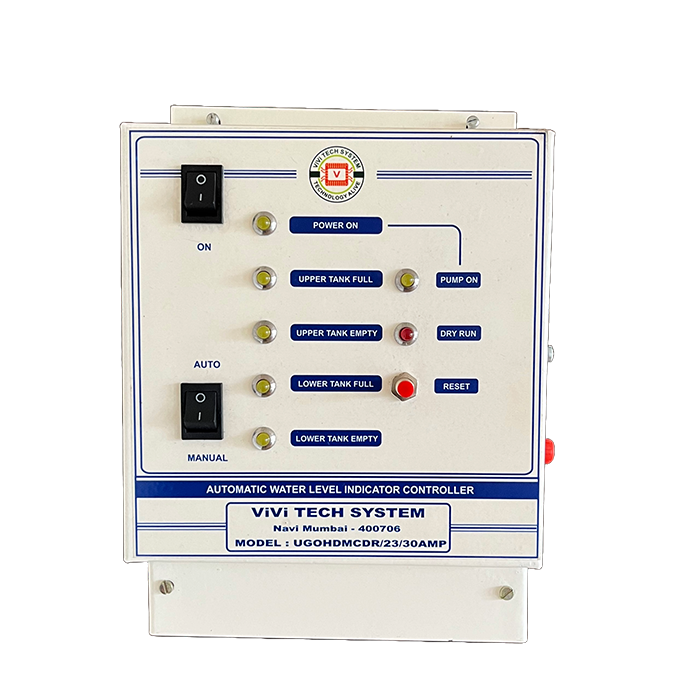

Underground & Overhead Tank
Water Level Indicator Controllers
(UGOHDMCDR/23/30AMP)
(UGOHDMCDR/23/30AMP)
This controller is suitable for the controlling the overhead tank water supply by sensing the both tank water level. The additional protection is pump dry run detection and tripping of pump along with audio visual alarm. The reset switch to reset the audio-visual alarm and restart the pump after dry run fault rectification.
Pump Start Condition:
Underground Tank : Full
Overhead Tank : Empty
Pump Stop Condition :
Underground Tank : Empty
Overhead Tank : Empty
Underground Tank : Full
Overhead Tank : Full
Dry Run trip conditionSpecification :
| Model No | UGOHDMCDR/23/30AMP |
|---|---|
| Control on | Underground Tank & Overhead Tank |
| Facia Indications | Power on/Pump on/Motor Dry Run Underground tank & Overhead tank level status |
| Protections | Underground tank Empty & Overhead tank Full Motor Dry Run |
| Dry Run Protection Time and control | 20 to 60 Seconds /Local Dry run Audio Alarm and motor trip automatically, Reset switch to restore the motor operation subject to clearance of Dry run |
| Operation Mode | Auto / Manual |
| Pump | Single Phase pump Up to 2 Hp Direct Drive |
| Pump Selection | Single Pump |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 6 X 8 X 2.5 inch |
| Mounting | Wall mounted type |
| Cabinet | MS powder coated |
| Assembling | Industrial grade components |
