(UGDMCDR/23/30AMP)
This model is suitable where overhead tank capacity is large and underground tank capacity is small.
This model is suitable for the controlling the overhead tank water supply as soon as the underground tank gets full. The pump will start and the underground tank water will be lifted to the overhead tank. The pump will be stop when the underground tank gets empty.
The controller has a protection for pump Dry run safety. Which senses the water reaching to overhead tank within the 60 seconds whenever pump starts. If the water is not reaching to overhead tank within the specified time it trips the pump and gives audio visual alarm. Thus protecting the pump from the damage. The audio visual alarm will be reset by the application of Reset switch.
Note: if water is supply from underground tank & incoming water flow will be very high ball valve required to stop underground tank overflow.
Specification :
| Model No | UGDMCDR/23/30AMP |
|---|---|
| Control on | Underground Tank |

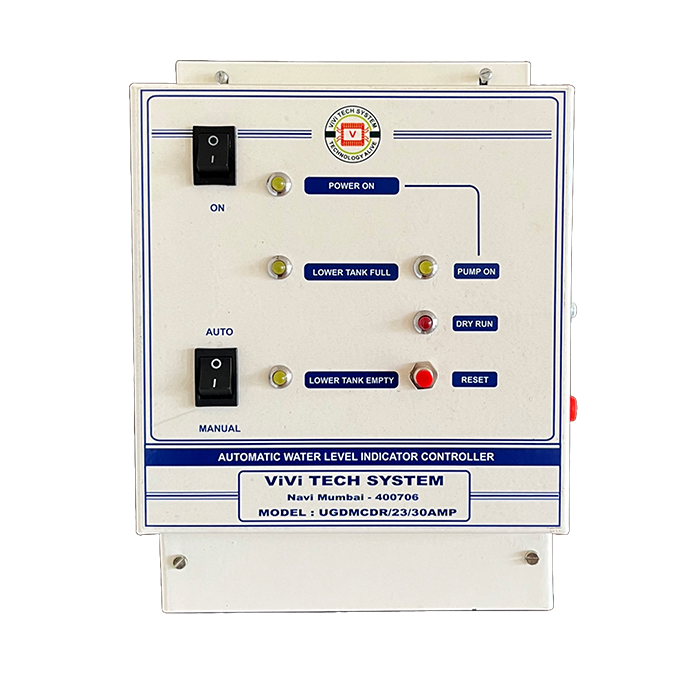

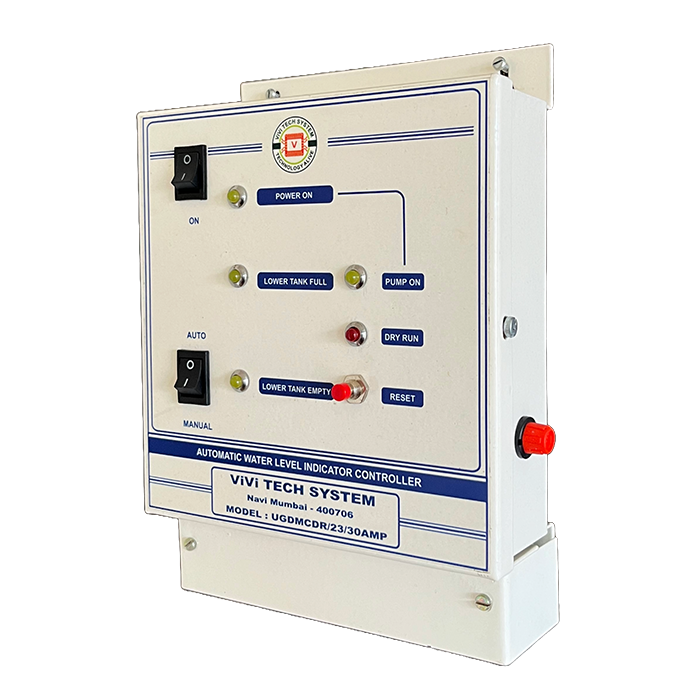

| Facia Indications | Power on/Pump on/Motor Dry Run Underground tank level status |
| Protections | Underground tank Empty Motor Dry Run |
| Dry Run Protection Time and control | 20 to 50 Seconds /Local Audio Alarm and motor trip automatically, Reset switch to restore the motor operation subject to clearance of Dry run |
| Operation Mode | Auto / Manual |
| Pump | Single Phase pump Up to 2 Hp Direct Motor Drive |
| Pump Selection | Single Pump |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 6 X 8 X 2.5 inch |
| Mounting | Wall mounted type |
| Cabinet | MS powder coated |
| Assembling | Industrial grade components |
