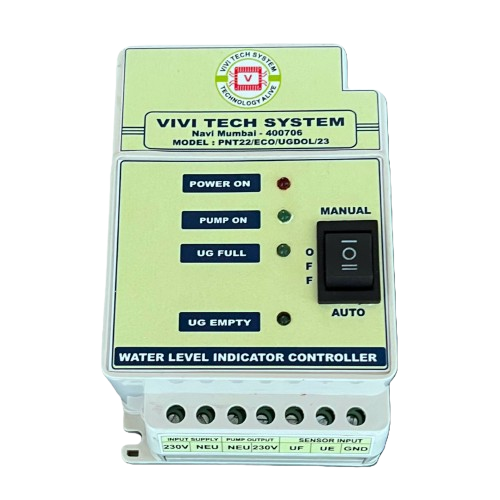

PNT22/ECO/UGDOL/23
This model is suitable where overhead tank capacity is large and underground tank capacity is small.
This model is suitable for the controlling the overhead tank water supply as soon as the underground tank gets full. The pump will start and the underground tank water will be lifted to overhead tank. The pump will be stop when the underground tank gets empty.
Note: if water is supply from underground tank & incoming water flow will be very high ball valve required to stop underground tank overflow.
Specification :
| Model No | PNT22/ECO/UGDOL/23 |
|---|---|
| Control on | Underground Tank |
| Facia Indications | Power on/Pump on Underground tank level status |
| Protections | Underground tank Empty |
| Operation Mode | Auto / Manual |
| Pump | Single Phase / Three Phase motor with starter/contactor |
| Pump Selection | Single Pump |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 3 X 4 X 1.75 inch |
| Mounting | Wall mounted type DIN mounting |
| Cabinet | ABS Plastic |
| Assembling | Industrial grade components |
