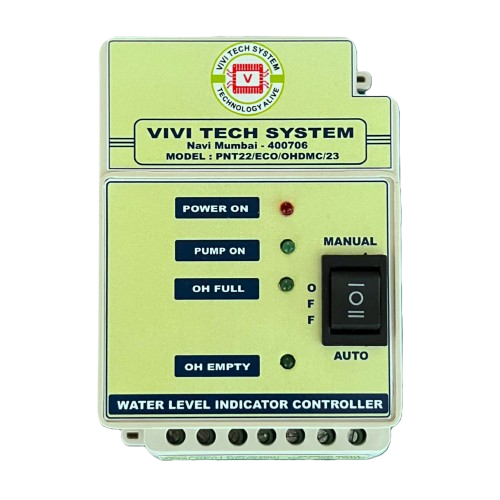

Economical Water Level
Indicator Controller
(PNT22/ECO/OHDMC/23)
(PNT22/ECO/OHDMC/23)
This model is suitable where overhead tank capacity is small and underground tank capacity is large.
This model is suitable for the controlling the overhead tank water supply as soon as the overhead tank gets empty. The pump will start and the underground tank water will be lifted to overhead tank. The pump will be stop when the overhead tank gets full.
Specification :
| Model No | PNT22/ECO/OHDMC/23 |
|---|---|
| Control on | Overhead Tank |
| Facia Indications | Power on/Pump on Overhead tank level status |
| Protections | Underground tank Empty |
| Operation Mode | Auto / Manual |
| Pump | Single Phase pump Up to 2 Hp Direct Drive |
| Pump Selection | Single Pump |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 3 X 4 X 1.75 inch |
| Mounting | Wall mounted type DIN mounting |
| Cabinet | ABS Plastic |
| Assembling | Industrial grade components |
