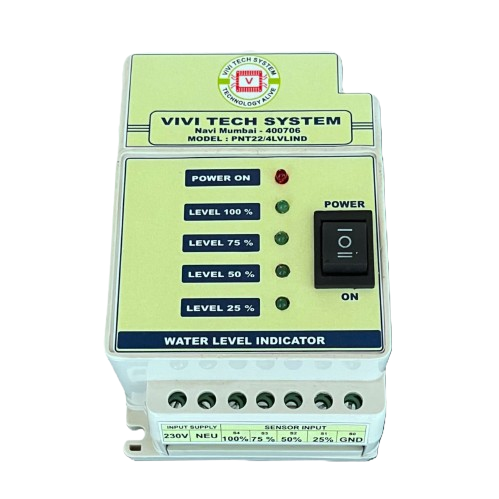

Four Level Water Level
Indicators
PNT22/4LVLIND
PNT22/4LVLIND
This model is suitable for any tank to indicate the status of water or liquid level inside it. The tank Level 25% to 100% will be shown on the unit facia.
The sensor probes having the flexibility to adjust anywhere in the tank to indicate the required level.
Application : Domestic & Industrial tank level indication.
Specification :
| Model No | PNT22/4LVLIND |
|---|---|
| Control on | Any Tank |
| Facia Indications | Power on Tank Level 25 % Tank Level 50 % Tank Level 75 % Tank Level 100 % |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 3 X 4 X 1.75 inch |
| Mounting | Wall mounted type DIN mounting |
| Cabinet | ABS Plastic |
| Assembling | Industrial grade components |
