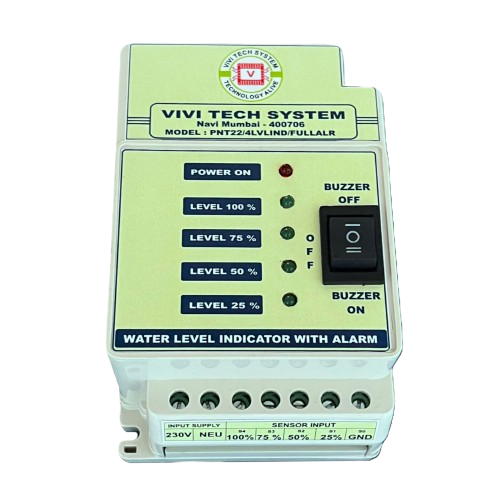

PNT22/4LVLIND/FULLALR
This model is suitable for any tank to indicate the status of water or liquid level inside it. The tank Level 25% to 100% will be shown on the unit facia.
The sensor probes having the flexibility to adjust anywhere in the tank to indicate the required level.
The unit gives the Audio alarm when the tank gets Full. The user can be used the unit in Alarm mode OR Non Alarm mode by the selecting DPDT switch.
Application : Domestic & Industrial tank level indication
Specification :
| Model No | PNT22/4LVLIND/FULLALR |
|---|---|
| Control on | Any Tank |
| Facia Indications | Power on Tank Level 25 % Tank Level 50 % Tank Level 75 % Tank Level 100 % |
| Supportable Sensors | Float/Magnetic/ SS electrode |
| Audio Alarm | Buzzer on Tank Full |
| Alarm Bypass | DPDT switch can be used in Alarm mode or Non Alarm mode |
| Sensor Length | Max. 60mtrs without strong magnetic field |
| Supply Voltage | 230V AC/50 Hz |
| Sensing Voltage | 12V DC/0.12 Micro Amp |
| Size | W X H X D 3 X 4 X 1.75 inch |
| Mounting | Wall mounted type DIN mounting |
| Cabinet | ABS Plastic |
| Assembling | Industrial grade components |
